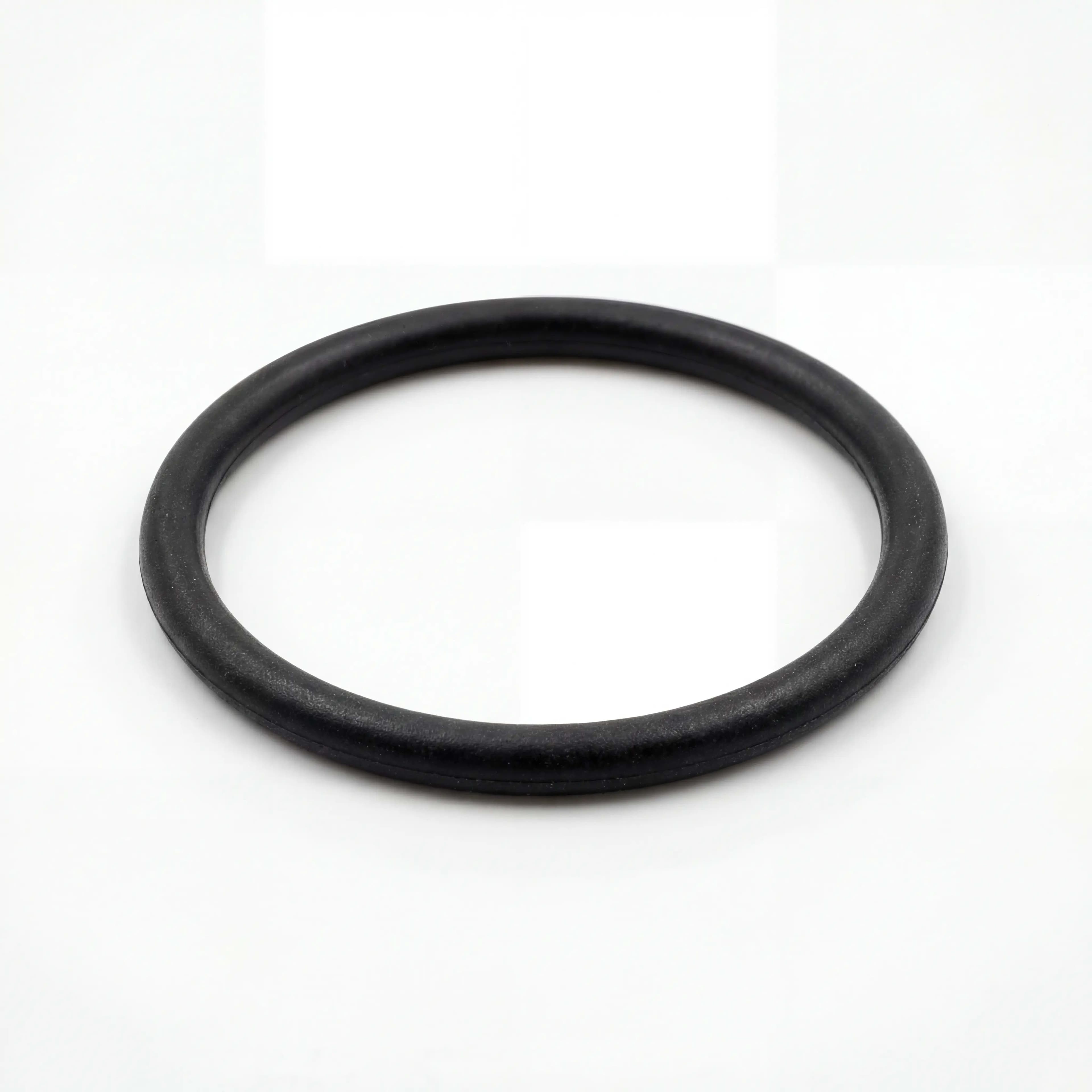

Buna-N (NBR) O-Ring AS568-150, 2.862" ID x 0.103" CS, 70A
Item N70-AS568-150
Web Price
€9.43/ pkg. of 50
1-9€9.43
10-49€8.01
50+€7.54
Qty (Packs)
Availability:
In Stock (9999)
Ship
Ships to your location via standard freight.
Pickup
Select branch at checkout.
Shipping Weight: 63.78 g
CAD
Streamline your design process with our Solidworks Add-In. Available for Solidworks 2017 or newer. Download Installer
Dimensional Specifications
Inside Diameter (ID)
183/64"2.862" (72.69mm)
Cross-Section Width (CS)
7/64"0.103" (2.62mm)
Outside Diameter (OD)
49/16"3.068" (77.93mm)
Product Details
Weight63.78 g
Dimensions13.1×7.79×7.79 mm
Origin CountryChina
Unitbag
Dash No150
MaterialNBR
As568 Dash150
Temp Max C120
Temp Range-40° to +248°F
Pfas Statuspfas_free
Standards MetASTM D2000|SAE AS568|SAE J200
Cross ReferencesParker 2-150N70|Freudenberg N150-70|Apple Rubber OR150-NBR70|Trelleborg OR-150-70N|Global O-Ring N70-150
Pressure Max Mpa10
Chemical CompatibilityAliphatic Hydrocarbons|Animal Oils|Boric Acid|Butyl Alcohol|Calcium Hydroxide|Citric Acid|Diesel Fuel|Ethanol|Ethylene Glycol|Glycerin|Grease|Isopropyl Alcohol|Kerosene|Methanol|Mineral Oils|Motor Oil|Natural Gas|Nitrogen|Petroleum-Based Hydraulic Fluids|Potassium Hydroxide|Propane (LPG)|Silicone Grease|Sodium Bicarbonate|Vegetable Oils|Water
ColorBlack
Hardness70A
StandardAS568
Hs Code Eu4016.93.00
Temp Min C-40
Hts Code Us4016.93.5050
Fda Compliantfalse
CertificationsREACH|RoHS
MinOrderQuantity1
System Of Measurementinch
Product Description
Standard Buna-N (NBR) O-Ring, AS568-150, 72.69mm (2.862") ID x 2.62mm (0.103") CS, 70 Shore A durometer, black. Temperature range: -40°C to +120°C (-40°F to +248°F). Compliant with REACH and RoHS.
